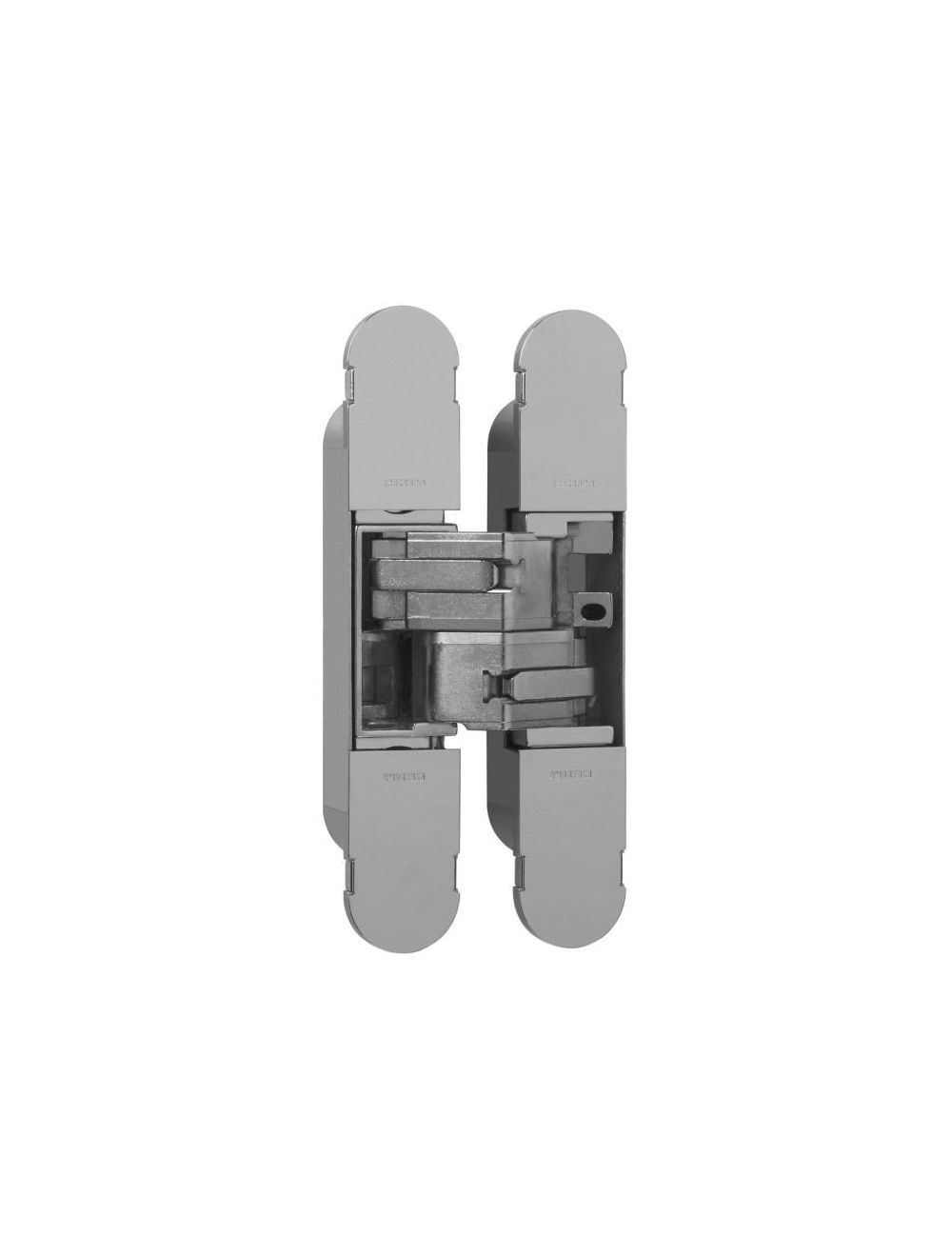

Ceam 3D 1130 Concealed Hinge

£37.50
  • Type:Concealed hinge
  • Length:134mm
  • Width:24mm
  • Depth:21mm
  • Base material:Zinc alloy
Availability: In stock
SKU
CI001130

Areas covered:

We deliver to all postcodes in the mainland United Kingdom. This excludes Northern Ireland, Isle of Man and Channel Islands (these areas will require special arrangements, please contact us for more information).


Delivery charges

Doors and joinery items (excluding ironmongery and metal doors) - £45 for 1st item in your order and £6 for any additional item, up to a maximum of £99.

Charges for delivery of door sets such as room dividers, folding sets or front door sets with side panels are calculated based on a number of standalone components included in the set (doors, panels, frame sets etc.) up to a maximum of 4 items, costing up to a maximum of £68.

Ironmongery – Flat £12 charge for any number of ironmongery products in the order.

Metal Doors - Flat £90 charge for any number of doors/sidelights/toplights in the order.



How does it work – Deliveries explained

Doors and joinery items – Your order is despatched within 1 working day (subject to stock availability). The delivery is conducted by a specialist nationwide carrier of heavy goods, who will contact you in advance to arrange a suitable delivery date. The total time from order to delivery should not exceed 4-6 working days.

Please note: Goods need to be checked carefully upon arrival and any faults, damages or errors must be noted clearly on the delivery note and reported to us immediately. Please do not sign the delivery note until you inspect the goods thoroughly.

Ironmongery – these items are always sent separately to doors and joinery using FedEx’s Next Day Parcel Delivery service and should arrive in maximum 2 working days from order. Parcel deliveries are not pre-arranged in advance. If there is no one at the address to receive the parcel, a calling card will be left to arrange the delivery for another day.

Check our Terms and Conditions for information about Returns, Cancellations, Refunds and Guarantees.

Ceam 3D 1130 Concealed Hinge (40-60kg)

A concealed medium duty zinc alloy hinge for unrebated, flush faced quality timber doors - 21x24x134mm. Has removable cover plates to conceal the adjustment screws. Requires minimum door leaf thickness of 32mm. 180 degrees opening angle. Certified for use on 30min Fire Doors (FD30). 10 years manufacturing guarantee. Max loading 40kg with 2 hinges and 60kg with 3 hinges (middle hinge to be positioned 250mm below top hinge). Heavy duty version of this hinge up to 120kg loading is also available - please call for details.

Please note that unlike other hinges this hinge is sold as a single item. You will need 2 or 3 hinges per door, depending on application.

Adjustable in 3 dimensions:
Vertical +/- 2.5 mm
Horizontal +/- 1 mm
Depth -1.5, +2.5 mm


  • Type:Concealed hinge
  • Length:134mm
  • Width:24mm
  • Depth:21mm
  • Base material:Zinc alloy
